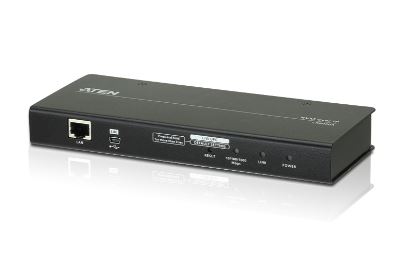

ATEN Single Port VGA KVM over IP Switch CN8000A

ATEN Single Port VGA KVM over IP Switch CN8000A

עד 64 חשבונות משתמש

עד 32 כניסות במקביל

תכונת סיום הפעלה – מנהלים יכולים לסיים הפעלות פועלות

רישום אירועים ותמיכה מבוססת Windows Server

אירועי מערכת קריטיים שנשלחו באמצעות דוא"ל ומלכודת SNMP; ותמיכה בסיסלוג

הקונסולה המקומית מספקת תמיכה ב- PS / 2, מקלדת USB ועכבר

תמיכה במדיה ווירטואלית

—-

לכניסה לפירוט הדגם המלא באתר היצרן לחצו כאן

Hardware

Provides over-IP capability to KVM switches that do not have built in over-IP functionality *

Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity

Local console provides PS/2, USB keyboard and mouse support***

Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices

Virtual Media Support

High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions

Enhanced fps (frames per second) throughput for crisp responsive video display
Note:
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
– Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
– Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
** Requires CV130A converter purchase
***Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue.

Management

Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation

Easy configuration through local console OSD

Up to 64 user accounts

Up to 32 concurrent logins

End session feature – administrators can terminate running sessions

Event logging and Windows-based Log Server support

Critical system events sent by email and SNMP trap; and Syslog support

Remote Firmware upgradable

Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party

software (such as PuTTY) for Telnet and SSH sessions

PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation

Port Share Mode allows multiple users to gain access to a server simultaneously

Local/Remote Share Mode to conveniently grant shared or exclusive console privilege

Integration with ATEN CC2000 Centralized Management Software

Integration with ATEN CCVSR Video Session Recording Software

Power Over the NET integration for remote power control

DDNS (Dynamic Domain Name System)

Export/import user account and configuration settings

Enable/disable browser operation

IPv6 capable

Easy-to-Use Interface

Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity

Multiplatform client support (Windows, Mac OS X, Linux, Sun)

Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required

Full-screen or sizable and scalable Virtual Remote Desktop

Magic Panel

Advanced Security

Smart Card /CAC Reader Support

External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory

TLS 1.2 encryption to protect password when users log in

Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption

Support for IP/MAC Filter

Supports password protection

Private CA

Virtual Media

Virtual media enables file applications, OS patching, software installation and diagnostic testing

Works with USB enabled servers in operating system and BIOS level

Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

Convenient to use without virtual media cable

Virtual Remote Desktop

Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations

Full screen video display or scalable video display

Message Board for communication among remote users

On-screen keyboard with multilanguage support

Mouse Dynasync

Exit Macros support

• BIOS-level access
