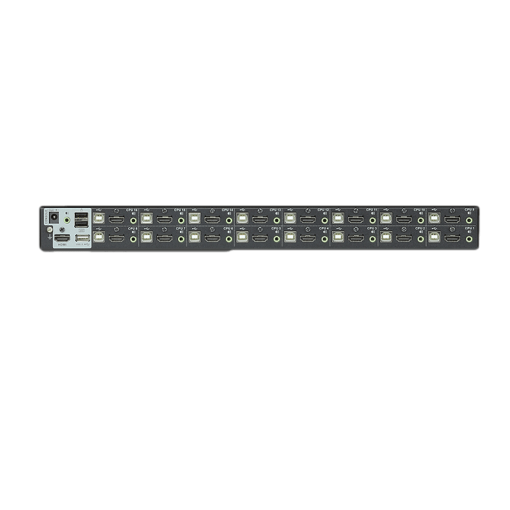

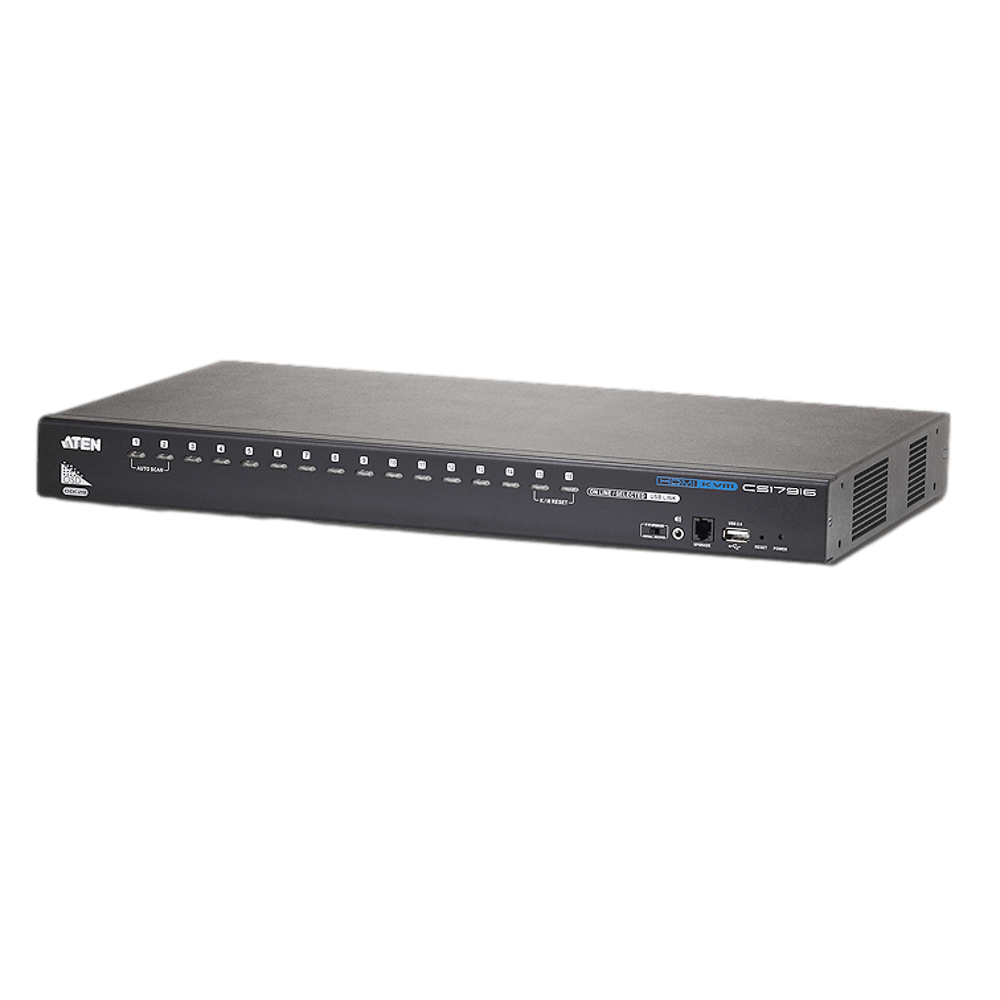

ATEN 16-Port USB HDMI/Audio KVM Switch CS17916

ATEN 16-Port USB HDMI/Audio KVM Switch CS17916

• ממתג KVM מתקדם המאפשר חיבור עד 16 שרתים עם יציאת מסך HDMI, מקלדת ועכבר USB, ואודיו אנלוגי או דיגיטלי דרך ה HDMI.
• קונסולת USB אחת שולטת עד שש עשרה מחשבי ממשק HDMI ושני התקני USB 2.0 נוספים
• תואם HDMI
• ניתן לשני רמות – לשלוט עד 256 מחשבים
• תכונת Multi-Display – ערימה עד שמונה יחידות CS17916 והצגת וידאו עד שמונה צגים

—–

• One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
• HDMI compatible
• Cascadable to two levels–control up to 256 computers
• Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
• 2-port USB 2.0 hub built in
• Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
• Independent switching of KVM and USB focus
• OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
• Firmware upgradable
• Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Superior video quality–supports up to 1080p / 1920 x 1200@60Hz
• Supports widescreen resolutions
• Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
• Console audio ports on front panel for easy access
• Auto Scan Mode for monitoring all computers
• HDCP compatible
• Multiplatform support–Windows, Linux, Mac, Sun
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation*1.2.
• Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
• Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
• Supports hot-plugging

  Note : Enable mouse emulation for independent switching
  1. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
  2. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.



לכניסה לפירוט הדגם המלא באתר היצרן לחצו כאן
