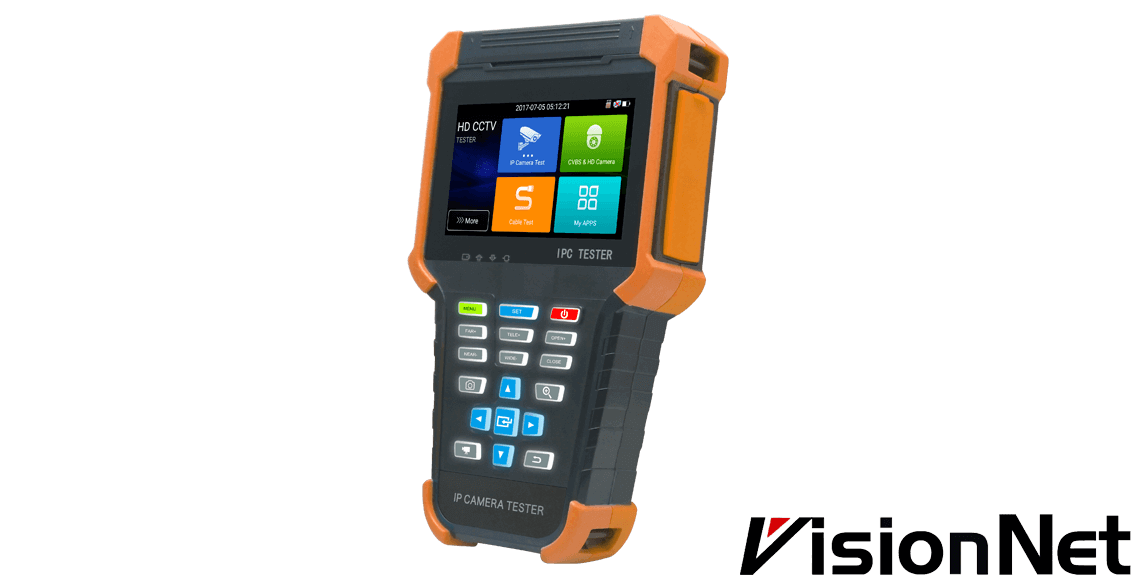

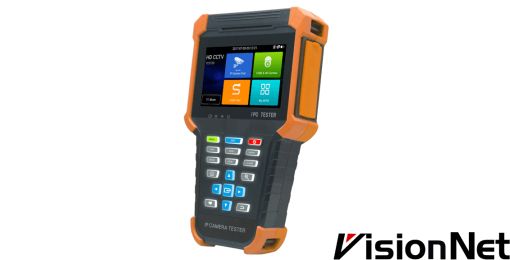

ALL IN ONE CAMERA TESTER 4K H.265

Professional tools for CCTV installation and troubleshooting

4K H.265

4inch IPS touch screen, 800×480 resolution

H.265 and H.264, 4K video display via mainstream

8MP CVI, 8MP TVI, 5MP AHD test and SDI/EX-SDI Test*

HD coaxial videos signal quality and level meter test

IP and CVBS, ONVIF camera test

ONVIF PTZ control, video record and playback, screen snapshot 4xzoom/move the image display and video output

HDMI signal input, support 1080P*

RJ45 TDR cable test, to test cable pair status, length, attenuation reflectivity, skew and other parameters, cable quality test

Cable tester. UTP cable, telephone cable's sequence and connectivity test, can save testing report

Backlight key design, convenient for operate in the dark

TesterPlay. Mobile phone, PC and Tester display at the same time

Self-install android version software, such as wechat, QQ etx

Drop-down menu and self-define shortcut menu

Screen capture, you can capture screen interface in any time

CVBS loop test, send and receive color bar signal, to check BNC cable

Lithium lon Polymer Battery, after charging 5 ~ 6 hours, working time lasts 9 hours

DC 48V PoE power output/ DC 12V 2A power output
